Nutsche filter
Nutsche filter is a versatile machine used for drying as well as filtering. These machines are used in the manufacturing process of various chemicals, pesticides, insecticides, dyes, food products and pharmaceuticals.
- pressure
- vacuum
- both
Capacity:
- Volume:250 up to 10.000 litters
- Filter OD from 450mm to 1000mm
- Temperature up to 200ºC
Materials:
stainless steel 304 or 316, Nickel Alloy Steel,duplex, super-duplex, exotic materials
Certifications:
Filter nutsche is a pressure vessel, Gold-bar can supply the filter with IS 4295 or with the EUR. CE/PED
- Pharmaceuticals
- Chemical Industries
- Dairy Plants
- food Industries

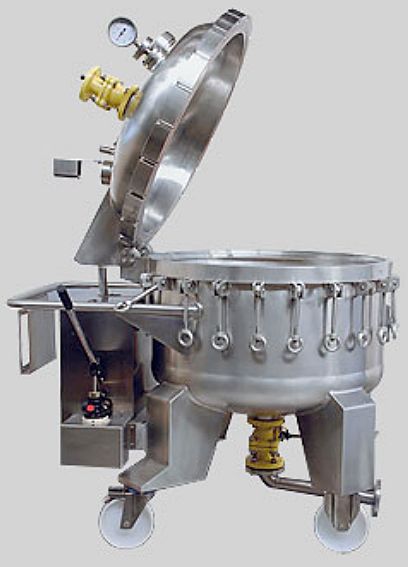

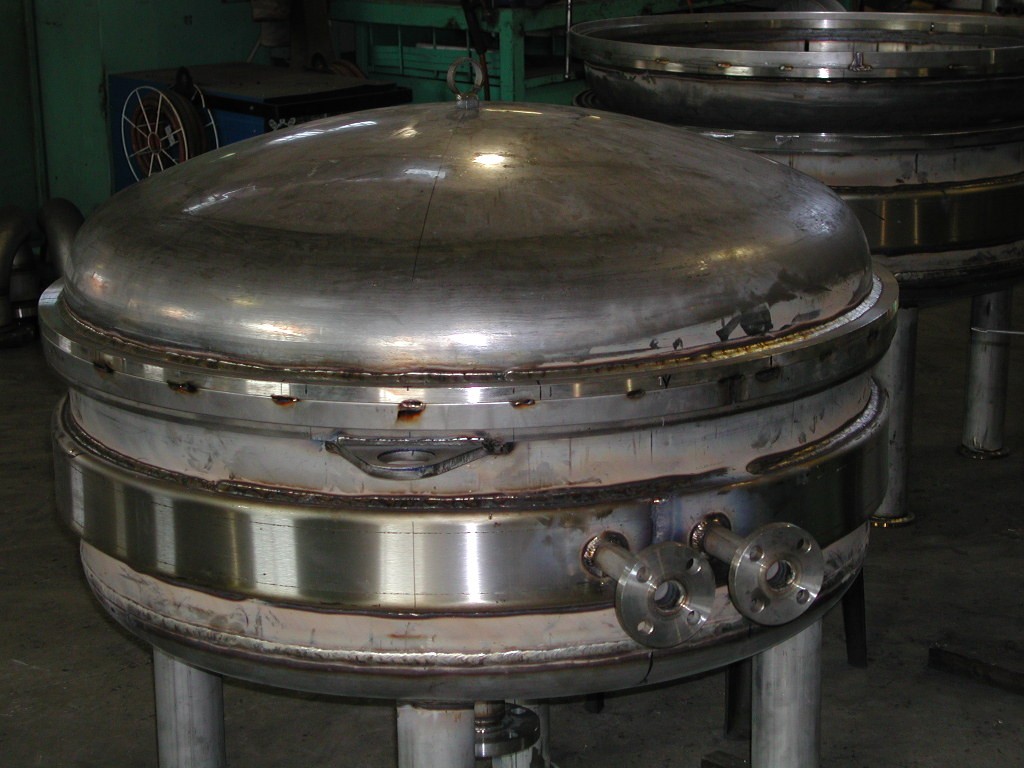

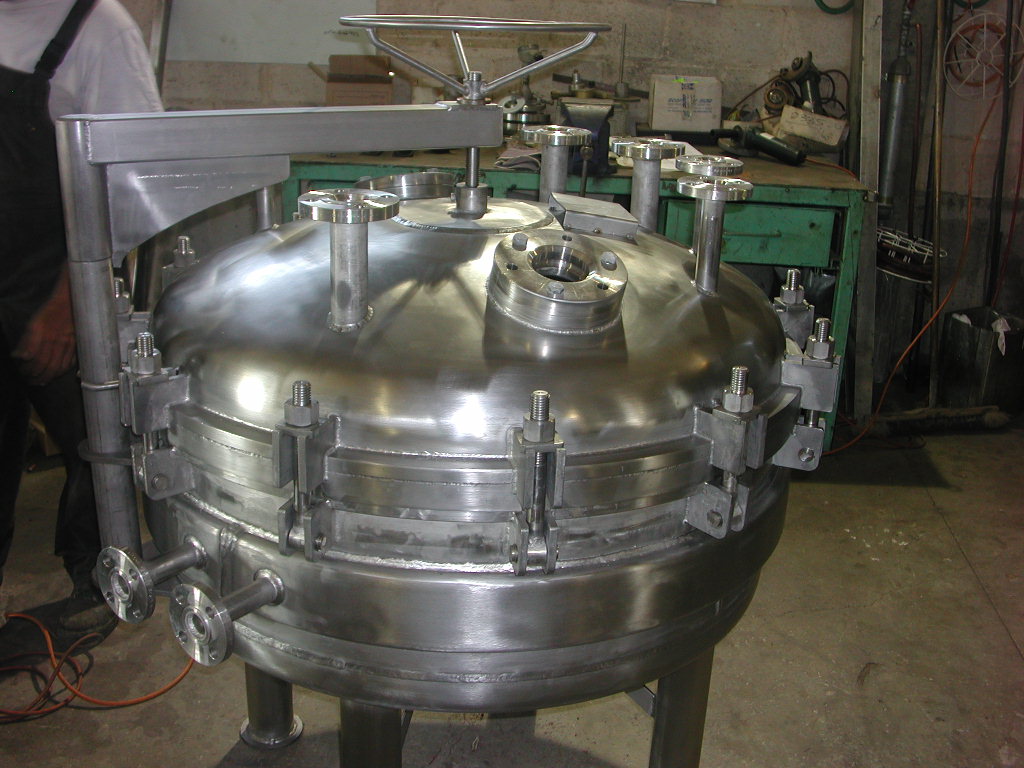

The unit consists of a totally enclosed and sealed cylindrical Shell. The cylinder operates under pressure or vacuum or both. A filter plate with filter cloth is Fitted at the bottom of the shell for separating liquids from solids. The cake is retained on top of The plate. A vacuum pump connected to receiver is installed for discharging of liquids and vapor collection. The cylindrical shell can also be provided with a jacket.
- Easy recovery of cake in dry or wet form
- Available in alloy or rubber-lined construction
- No wasted heel (zero bypass)
- Designs from full vacuum to 300 psi or higher
- Wide variety of construction materials available
- Recovery of valuable solids where the filter cake is the product and filtrate is the waste
- Permits multiple processes to take place within the filter such as steaming, sparging, drying or washing
- Accommodates a wide variety of flow rates and solids loadings
- Porous cakes applications where cakes can build to several inches
- Pilot Plant studies
- Further treatment with Nitrogen purges or washes (acids)
